934

PGZ18 Ceramic Lampholder for Philips CDM Elite MW lamp

This compact lampholder uses the patented "twist-and-pull contact".
Wire routing is possible to the side or to the back.

Variant

Variant with pillar terminal available.
rated voltage: 500 V
rated current: 10 A
rated temperature: T350
category: III
ignition voltage: 5 kV, >30kHz
shock protection: enclosed
insulation: reinforced insulation



935

PGZX18 Ceramic Lampholder for protected lamp

This compact lampholder uses the patented "twist-and-pull contact".
Wire routing is possible to the side or to the back.

Variant

Variant with pillar terminal available.
rated voltage: 500 V
rated current: 10 A
rated temperature: T350
category: III
ignition voltage: 5 kV, >30kHz
shock protection: enclosed
insulation: reinforced insulation



945

PGZ12 Ceramic Lampholder with Flange

This lampholder extends the LCL, therefore it perfectly suits retrofit situations.
Wire routing is possible to one side, both sides or to the back.
rated voltage: 250 V
rated current: 10 A
rated temperature: T350
category: III
ignition voltage: 5 kV
shock protection: enclosed
insulation: reinforced insulation



945

PGZ12 Ceramic Lampholder for Philips Cosmopolis lamp

This compact lampholder uses the patented twist-and-pull contact.
Wire routing to one side, both sides or to the back possible.
rated voltage: 250 V
rated current: 10 A
rated temperature: T350
category: III
ignition voltage: 5 kV
shock protection: enclosed
insulation: reinforced insulation



800

PGJ5 Ceramic Lampholder

With its new lampholder-variant '800 high' and the standard-lampholder 869, B+W introduces 100% compatible lampholders for lamp types PGJ5 and GU6.5.

Both lampholders measure the same external diameter, provide an identical foot print and position the light centre of the lamp at exactly the same height. This compatibility feature allows using either lamp type in identical optical units without any mechanical modifications.

rated voltage: 250 V
rated current: 2 A
rated temperature: T350
category: II
ignition voltage: 2.5 kV
shock protection: enclosed
insulation: reinforced insulation



831

PGJ5 Ceramic Lampholder

This lampholder has been developed in conjunction with Philips to form a unique system. With the 831 lampholder it is now possible to retrofit an existing low voltage luminaire with a HID lamp without a complete redesign. All that is needed is an earth terminal for protection purposes.
rated voltage: 250 V
rated current: 2 A
rated temperature: T350
category: II
ignition voltage: 2.5 kV
shock protection: unenclosed
insulation: basic insulation



857

G8.5 Ceramic Lampholder

Cable ducting allows wire routing to one side, both sides or to the back.

Variant:

With covered mounting holes to prevent wrong insertion. Fixing can only be done from the back side.
rated voltage: 500 V
rated current: 10 A
rated temperature: T350
category: II
ignition voltage: 5 kV
shock protection: enclosed
insulation: basic insulation



847

GX10 Ceramic Lampholder

For HID lamps with 50mm mirror.

Please use plastic insulation cap or additional clearance is required, see mounting information.

rated voltage: 500 V
rated current: 2 A
rated temperature: T350
category: II
ignition voltage: 5 kV
shock protection: unenclosed
insulation: basic insulation

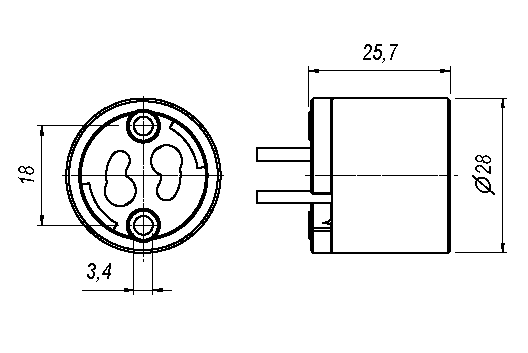

871

GX10 Ceramic Lampholder

For HID lamps with 50mm mirror.
Lampholder with patented "twist-and-pull contact".

Wire routing is possible to one side, both sides or to the back.
rated voltage: 250 V
rated current: 6 A
rated temperature: T350
category: II
ignition voltage: 5 kV
shock protection: enclosed
insulation: reinforced insulation

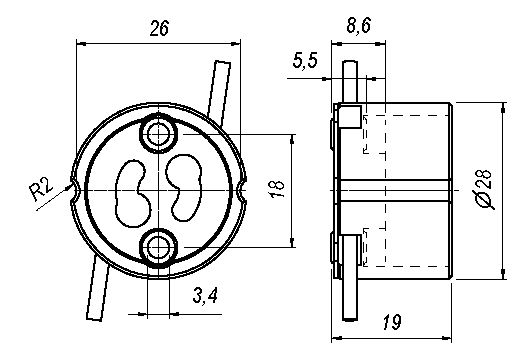

844

GZ10 Ceramic Lampholder

For line-voltage mirror lamps 50mm
Lampholder with patented "twist-and-pull contact".

Variant:
Vertical leads available, please mention with order.

Accessories:
Plastic cap for protection class II applications

rated voltage: 250 V
rated current: 2 A
rated temperature: T350
category: II
shock protection: enclosed
insulation: basic insulation
