hits 1 - 7 (count 7)

catalog no.

bases

memo

ratings

Luxtech

LED

LED holder series 430
in different Variants
for the Luxtech COBs

catalogue B&W - Luxtech.

rated voltage:	80 V DC
rated current:	5 A
rated temperature:	T 180

drawing

632

LED
LED 630

COB holder hybrid 632

suitable COBs and optical interfaces:
see data sheet

Benefits:
> mica core
> housing with optic interface
> Clip in function
> push in terminal

More information / variants.

rated voltage:	250 V DC
rated current:	5 A
rated temperature:	T 120

drawing

442

LED

LED holder 442

suitable for the following COBs: data sheet

Benefits of the LED holder series 430:
> safe solderless contacting of the LED
> solid und shape retentive materials
> extremely low profile

rated voltage:	80 V DC
rated current:	5 A
rated temperature:	T 180

drawing

652

LED
LED 630

COB holder hybrid 652

suitable COBs and optical interfaces:
see data sheet

Benefits:
> mica core
> housing with optic interface
> Clip in function
> push in terminal

More information / variants.

rated voltage:	250 V DC
rated current:	5 A
rated temperature:	T 120

drawing

479

LED

LED holder 479

suitable for the following COBs: data sheet

Benefits of the LED holder series 430:
> safe solderless contacting of the LED
> solid und shape retentive materials
> extremely low profile

rated voltage:	80 V DC
rated current:	5 A
rated temperature:	T 180

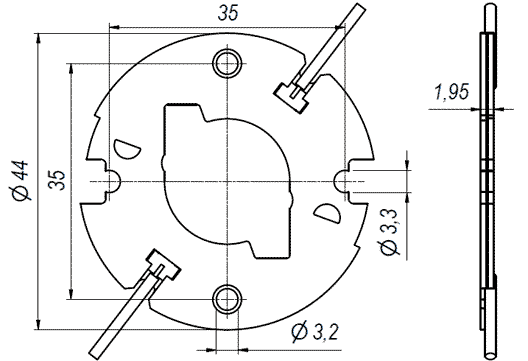

drawing

491

LED

LED holder 491

suitable for the following COBs: data sheet

Benefits of the LED holder series 430:
> safe solderless contacting of the LED
> solid und shape retentive materials
> extremely low profile

rated voltage:	80 V DC
rated current:	5 A
rated temperature:	T 180

drawing

4XX

LED

More variants are available under
COB holder / optic or in the main catalogue
of LED holder series 430.

If your COB or requested shape is
not available, please contact us.

We will implement the right solution
for You in the short term.
