hits 1 - 10 (count 13)

catalog no.

bases

memo

ratings

Nichia

LED

LED holder series 430
in different Variants
for the Nichia COBs

catalogue B&W - Nichia.

rated voltage:	80 V DC
rated current:	5 A
rated temperature:	T 180

drawing

431

LED

LED Halter 431

suitable for the following COBs: data sheet

Benefits of the LED holder series 430:
> safe solderless contacting of the LED
> solid und shape retentive materials
> extremely low profile

rated voltage:	80 V DC
rated current:	5 A
rated temperature:	T 180

drawing

438

LED

LED holder 438

suitable for the following COBs: data sheet

Benefits of the LED holder series 430:
> safe solderless contacting of the LED
> solid und shape retentive materials
> extremely low profile

rated voltage:	80 V DC
rated current:	5 A
rated temperature:	T 180

drawing

638

LED
LED 630

COB holder hybrid 638

suitable COBs and optical interfaces:
see data sheet

Benefits:
> mica core
> housing with optic interface
> Clip in function
> push in terminal

More information / variants.

rated voltage:	250 V DC
rated current:	5 A
rated temperature:	T 120

drawing

452

LED

LED holder 452

suitable for the following COBs: data sheet

Benefits of the LED holder series 430:
> safe solderless contacting of the LED
> solid und shape retentive materials
> extremely low profile

rated voltage:	80 V DC
rated current:	5 A
rated temperature:	T 180

drawing

652

LED
LED 630

COB holder hybrid 652

suitable COBs and optical interfaces:
see data sheet

Benefits:
> mica core
> housing with optic interface
> Clip in function
> push in terminal

More information / variants.

rated voltage:	250 V DC
rated current:	5 A
rated temperature:	T 120

drawing

463

LED

LED holder 463

suitable for the following COBs: data sheet

Benefits of the LED holder series 430:
> safe solderless contacting of the LED
> solid und shape retentive materials
> extremely low profile

rated voltage:	80 V DC
rated current:	5 A
rated temperature:	T 180

drawing

663

LED
LED 630

COB holder hybrid 663

suitable COBs and optical interfaces:
see data sheet

Benefits:
> mica core
> housing with optic interface
> Clip in function
> push in terminal

More information / variants.

rated voltage:	250 V DC
rated current:	5 A
rated temperature:	T 120

drawing

488

LED

LED holder 488

suitable for the following COBs: data sheet

Benefits of the LED holder series 430:
> safe solderless contacting of the LED
> solid und shape retentive materials
> extremely low profile

rated voltage:	150 V DC
rated current:	5 A
rated temperature:	T 180

drawing

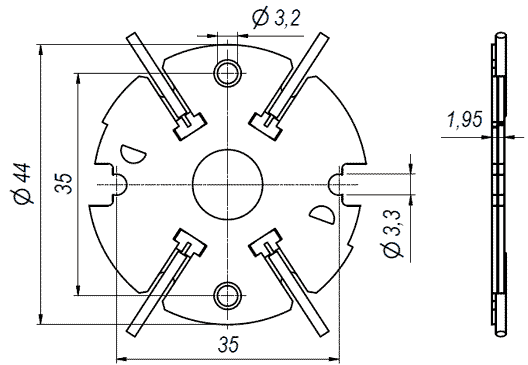

495

LED

LED holder 495

suitable for the following COBs: data sheet

Benefits of the LED holder series 430:
> safe solderless contacting of the LED
> solid und shape retentive materials
> extremely low profile

rated voltage:	80 V DC
rated current:	5 A
rated temperature:	T 180

drawing
